Full-Spectrum Lights for Indoor Venues

NGU Sports Lighting delivers industry-leading performance and customizability with the LUMADAPT 8. Our fixtures include full-spectrum lights for pitch-perfect natural lighting, color temperature tuning, integrated RGBA color flooding, and beam tuning. Full-spectrum light sources are excellent for any indoor application, from high school gyms and recreational facilities to professional sports and convention centers.

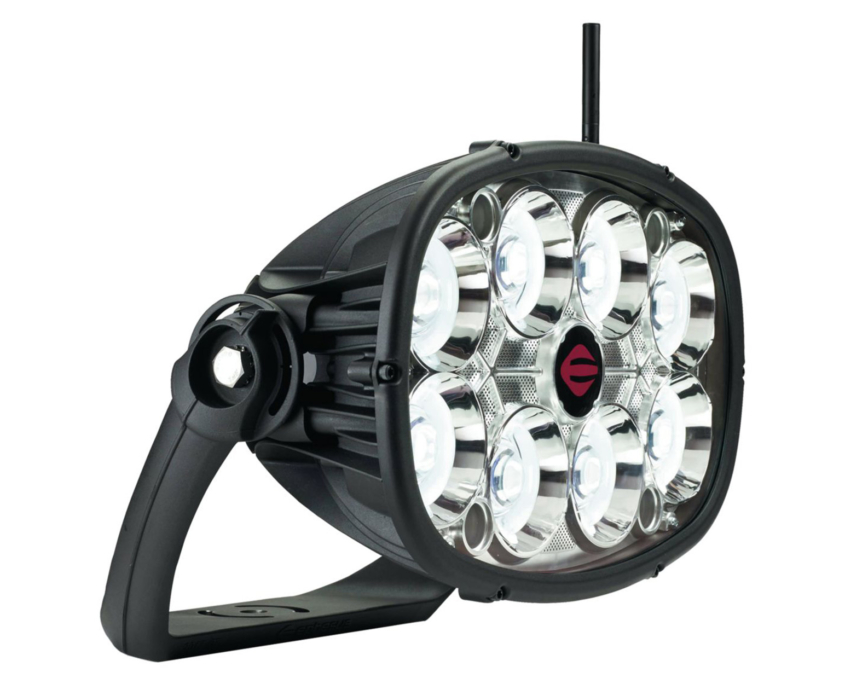

LUMADAPT 8: The Smart Sports Light Solution

The LUMADAPT 8 is a versatile RGBA LED lighting solution that offers multiple control options and feedback to address your facility’s needs without hassle. You can turn on features as you need them and adjust settings down to the smallest detail for a safe and exciting fan experience.

NGU Sports Lighting is your source for industry-leading full-spectrum light technology. The LUMADAPT 8’s key features include:

Integrated RGBA color for color mixing, color matching, flooding, scenes, and effects
LED beam light tuning optics to create narrower or broader beams
Solid-state design that delivers maintenance-free operations and no moving parts
360-degree mounting with many options to match your needs
Warmer and cooler tones with adjustable color temperature

Product Description Product Specs

Control RGBA LED Lights With Near-Field Communication

Near-field communication (NFC) is a wireless technology that improves connectivity among many devices. With NFC, smartphones, tablets, laptops, and more transfer information quickly through a single touch. The receiving device reads data the moment you send it, reducing the chances for error and increasing your flexibility. As long as all connected devices are near one another, communication is instant.

NGU Sports Lighting’s LUMADAPT 8 full-spectrum lights feature NFC capabilities. With integrated NFC, each fixture can communicate with unpowered fixtures to set color temperature, beam angle, and other parameters around the venue. Paired with high-quality feedback and monitoring that stores individual and system-level data in the cloud for review, the LUMADAPT 8 offers extensive, easy-to-adjust controls guaranteed to keep your venue on the cutting edge.

LUMADAPT 8 Specifications

LUMADAPT 8 is a versatile smart sports light. You can control fixtures through a wired or wireless connection indoors and outdoors and enjoy the full spectrum of colors, including red light, blue light, and white LED. LUMADAPT 8 delivers a long-lasting and highly adjustable lighting experience no matter the application.

As your LUMADAPT 8 supplier, NGU Sports Lighting offers lighting equipment with the following specifications:

Lumen Output by Color

Red – 325 lm
Green – 1950 lm
Blue – 277 lm
Amber – 1395 lm

Performance Data

Lumen output up to 50,000 lumens
Input wattage at 440 watts
Power supply output wattage at 400 watts
Input voltage (high voltage) at 277–480 VAC, 50/60 Hz
Input voltage (low voltage) at 120–240 VAC, 50/60 Hz
CCT Range at 5,000K nominal
Integrated RGBA color lighting
Color rendering index (CRI) >/= 85 CRI
Television Lighting Consistency Index (TLCI) at 70 min/75 typical TLCI
Full dimming range (1–100%)

NEMA 4 nominal beam angle
Operating temperature range of –40 degrees celsius to +50 degrees celsius
Pendant and yoke mounting options
360-degree (full range) mounting angle
UL 8750, UL 1598 electrical certifications
NEMA 4X rating
6kV common mode/4kV differential mode
1.4-square-foot effective projected area
Approximate weight of 28 lbs

Plan for a Brighter Future With NGU

We’re more than a solid-state technology service provider. We build relationships and deliver quality solutions. We’re a lighting system partner that illuminates a path to your long-term success. Contact our team today to get started.
