Outdoor LED Sports Lighting Solutions

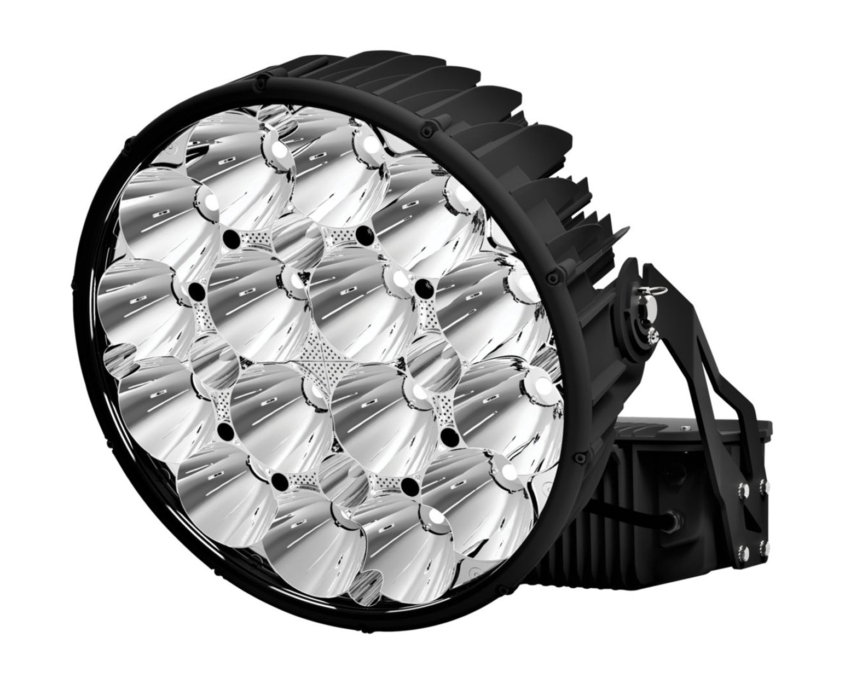

Better visibility improves the safety and experience of your audience and players. NGU Sports Lighting and Ephesus present the LUMASPORT 16, a flexible solution for lighting televised events at large college and professional outdoor venues. This solution features up to 199,300 lumens of output and extensive glare and cutoff control with our state-of-the-art Reflector and Louver Optical System.
High-Quality Professional Sports Lighting
Providing a safe, well-lit environment for players and spectators is a priority for every venue owner. NGU Sports Lighting can help whether you need a replacement for outdated lighting equipment or a brand-new application. We support arenas nationwide with large-scale light installations, including university stadiums and recreational facilities.
Our LUMASPORT 16 fixtures create the ideal lighting conditions for outdoor entertainment and presentations. The luminaire features several innovative technologies, like integrated louver and reflector optics for balanced light delivery and cutoff with extensive glare control. When it comes to lighting for live entertainment, the LUMASPORT 16 exceeds all performance requirements while ensuring visibility for spectators and players.
High-Performance Lighting for Live TV
The LUMASPORT 16 is a resilient, customizable, and easy-to-assemble application that meets stringent requirements for broadcasts. TV broadcasting requires an accurate color rendition with minimal distortion. According to Philips, pro sports lighting applications need a color temperature between 4,000K and 6,500K for optimal color perception. The LUMASPORT 16 offers a 5,700K correlated color temperature (CCT) and a Color Rendering Index (CRI) of 80 for a consistently rich and readable picture.
The LUMASPORT 16 also offers:
- Greater than 92% lumen maintenance at 55,000 hours
- Chip-on-board LEDs for light source reliability
- Simple two-piece assembly for reduced install time
- Power redundancy for less frequent maintenance
Specifications
LUMASPORT 16 Performance Data
- Lumen output of up to 199,300 lm
- Nominal power of 1,290W
- Input voltage (low voltage) of 208–277 VAC
- Input voltage (high voltage) of 347–480 VAC
- Efficacy range of 113–123 lm/W
- CRI of 80
- TLCP of 75
- CCT of 5,700K
- NEMA distribution of 2,3,5
- Dimming range of 10–100%
- Operating temperature range of –40 degrees celsius to +40 degrees celsius
- Local yoke mounting options
- FCC, UL8750, UL1598, and DLC Standard (NANQSV) electrical certifications
- ANSI C136.31–2010 1.5G, IP66, NEMA 4X environmental certifications
- 10kV surge
- 2.9-square-foot effective projected area (EPA)
- Approximate weight of 94.5 lbs
Join the Light Side With Excellent LED Sports Lighting Products
LED lights are cost-effective and versatile replacements for conventional lighting. The NGU team can help you evaluate your options for an upgrade or brand-new installation.
Large-Scale Sports Lighting With Chip-on-Board Technology
Your fans and professional sports teams expect consistent, high-quality performance from your lighting system. Failing solder joints and other fragile components impact lighting for televised events. NGU Sports Lighting helps you overcome these challenges with the LUMASPORT 16.
Our luminaire features chip-on-board (CoB) LEDs, a design free of solder joints that’s built to last no matter the season. You won’t need to worry about your LEDs failing from temperature fluctuations and other weather conditions. Our equipment retains 95% of its initial light output even after 55,000 hours. Once you’re set up with LUMASPORT 16, you’re set for years.
Customizable Sports Lighting Solutions
Streamline your setup with NGU’s DMX lighting control system, which links fixtures to minimize dedicated wiring. Managing up to 512 channels, it adjusts lighting aspects, patterns, intensity, color, and angle. Digital communication enables real-time laptop adjustments, simplifying control for an optimized lighting experience.
Wireless Sports Lighting Control
NGU’s AirMesh Hub allows you to finely adjust your system via an integrated network. Effortlessly manage and oversee fixtures using secure Wi-Fi, LAN, or cellular connections for seamless control and monitoring.
NGU Sports Lighting: Your Provider of Industry-Leading Sports Lighting Solutions
Experience superior outdoor sports lighting with NGU’s industry-leading technology. Our large venue lighting solutions illuminate with precision, ensuring optimal visibility for players and spectators. Designed for energy efficiency and unmatched performance, NGU’s sports lighting sets the standard for the outdoor sports experience. Contact our team of experts to get started.
