Adjustable Temperature LED Lights for Multipurpose Arenas

NGU Sports Lighting is dedicated to helping venues nationwide find an affordable and long-lasting solution to their event lighting woes. We’ve partnered with Ephesus to deliver LUMASPORT 8 Pro fixtures, equipment with a state-of-the-art lighting design perfect for multipurpose venues. Whether you have a table tennis arena, pickleball court, or professional baseball field, the LUMASPORT 8 Pro offers outstanding light output and custom features.

Professional Event Lighting With LUMASPORT 8 Pro Fixtures

Is your current lighting solution obsolete? Sourcing replacement parts for outdated lighting can be expensive. Upgrading your event lighting with a retrofit is a fantastic way to revitalize your event production. LUMASPORT 8 Pro LEDs can replace metal halide systems with a range of benefits for your organization. Interchangeable modular power, flexible controls, and varied mounting options are just the beginning.

NGU Sports Lighting is ready to elevate your venue to the next level. LUMASPORT 8 Pro benefits include:

Tunable white LEDs to help you set the tone for indoor and outdoor events
55,000- or 90,000-lumen output options
Glare control with cutting-edge Hybrid Reflector and TIR Optical System
Wireless AirMesh for remote control over all fixtures
Power redundancy to reduce the need for maintenance
Impact-resistant glass to prevent vandalization and downtime

Product Description Product Specs

Create a Unique Atmosphere With LED Color Temperature Control

With the LUMASPORT 8 Pro LED controller, you can set the tone for your arena. NGU Sports Lighting’s tunable white lighting technology allows you to control your fixtures’ temperature output, changing the color rendering in real time. You can tune the color temperature to make your fixtures have a warm white or cool white color.

We understand that the event lighting you use for a professional baseball game isn’t the same as what you need for a circus, concert, or corporate event. LUMASPORT 8 Pro is a robust but easy-to-adjust technology that gives you complete control over your event production. With our AirMesh wireless solution, you can remotely control the color temperature to set optimal conditions for skin and uniform tones.

NGU Sports Lighting can help you install your solution and find the right setting to make your arena pop no matter the occasion. Our lighting expertise is at your disposal.

Performance Data

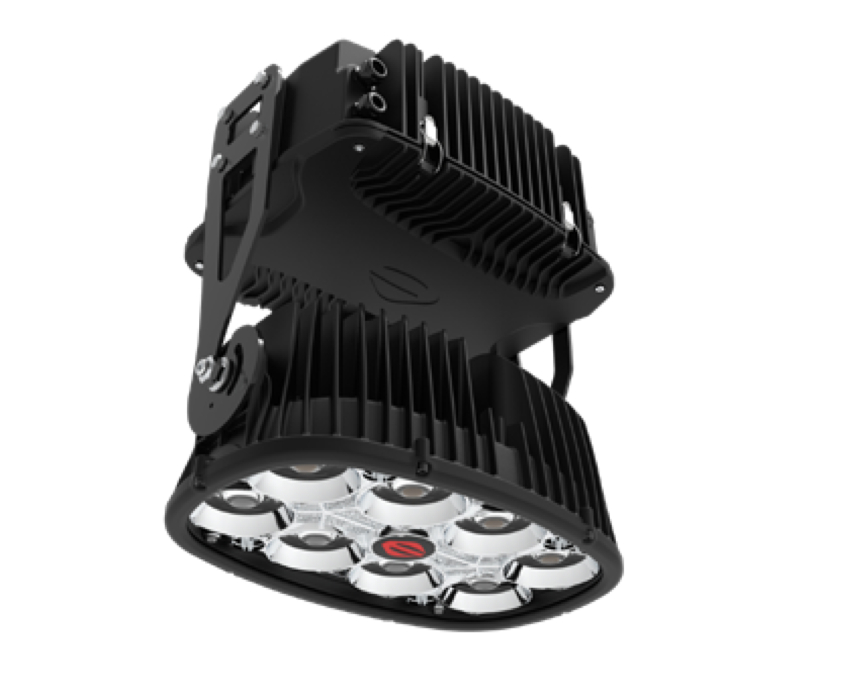

LUMASPORT 8 PRO (640CS)

Max Lumen Output of 76,426lm
Control Options LB (DMX) individual control
Nominal Power per driver box at 680W
Input Voltage (Low Voltage) of 120 -27 7 VAC
Input Voltage (High Voltage) of 347- 480VAC
Efficacy Range of 116 -12 2 lm/W
CRI of 80
TLCI of 75
CCT Range from 3000K to 6500K
Distribution (NEMA) of 3-5,7
Operating Temperature Range from -40°C to +40°C
Indoor and outdoor usage
LOCAL PENDANT; BOTTOM MOUNT YOKE FOR CATWALK BRACKET Mounting Options (3G RATED)
FCC, UL8750, UL159 Electrical Certifications
IP66, NEMA4X Environmental Certifications
ANSI C136.31-2010 3G Vibration
10kV Surge
Effective Projected Area (EPA) at 91.8 (sq. ft.) per lighthead, 1.0 (sq. ft.) per driver box
Effective Projected Area (EPA) with Visor (VHE) at 91.8 – 2.5 (sq. ft.)
Weight (Lbs) of LUMASPORT 8 PRO Lighthead is 34
Weight (Lbs) of Bottom Yoke (BY) Mount is +6Lbs to Lighthead
Weight (Lbs) of Local Pendant (LP) Mounting Arms is +5Lbs to Driver Box
Weight (Lbs) of LUMASPORT 8 PRO Driver Box is 38

LUMASPORT 8 PRO (600CD)

Max Lumen Output of 76,426lm
Control Options LB (DMX) individual control
Nominal Power per driver box at 1290W
Input Voltage (Low Voltage) of 208 -27 7 VAC
Input Voltage (High Voltage) of 347- 480VAC
Efficacy Range of 116 -12 2 lm/W
CRI of 80
TLCI of 75
CCT Range from 3000K to 6500K
Distribution (NEMA) of 3-5,7
Operating Temperature Range from -40°C to +40°C
Indoor and outdoor usage
LOCAL PENDANT; BOTTOM MOUNT YOKE FOR CATWALK BRACKET Mounting Options (3G RATED)
FCC, UL8750, UL159 Electrical Certifications
IP66, NEMA4X Environmental Certifications
ANSI C136.31-2010 3G Vibration
10kV Surge
Effective Projected Area (EPA) at 91.8 (sq. ft.) per lighthead, 1.0 (sq. ft.) per driver box
Effective Projected Area (EPA) with Visor (VHE) at 91.8 – 2.5 (sq. ft.)
Weight (Lbs) of LUMASPORT 8 PRO Lighthead is 34
Weight (Lbs) of Bottom Yoke (BY) Mount is +6Lbs to Lighthead
Weight (Lbs) of Local Pendant (LP) Mounting Arms is +5Lbs to Driver Box
Weight (Lbs) of LUMASPORT 8 PRO Driver Box is 38

Cutting-Edge Event Center Lighting From Industry Experts

NGU Sports Lighting is committed to your success. When you work with our professional team, we get to know your specific issues and modify your venue with cutting-edge lighting equipment to improve flexibility, reduce energy costs, and deliver a dazzling fan experience.

We care about your long-term success and your goals. Our industry experts base their recommendations on your requirements—we put ourselves in your shoes and do all we can to find solutions relevant to your challenges.

Plan for a Brighter Future With NGU

We’re more than a solid-state technology service provider. We build relationships and deliver quality solutions. We’re a lighting system partner that illuminates a path to your long-term success. Contact our team today to get started.
